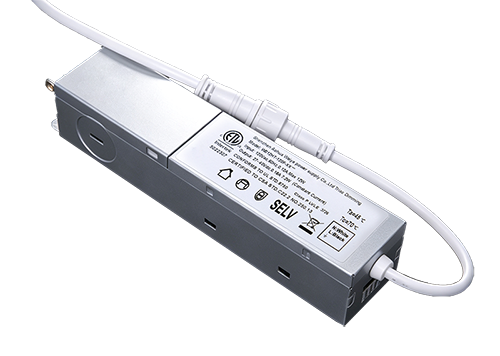

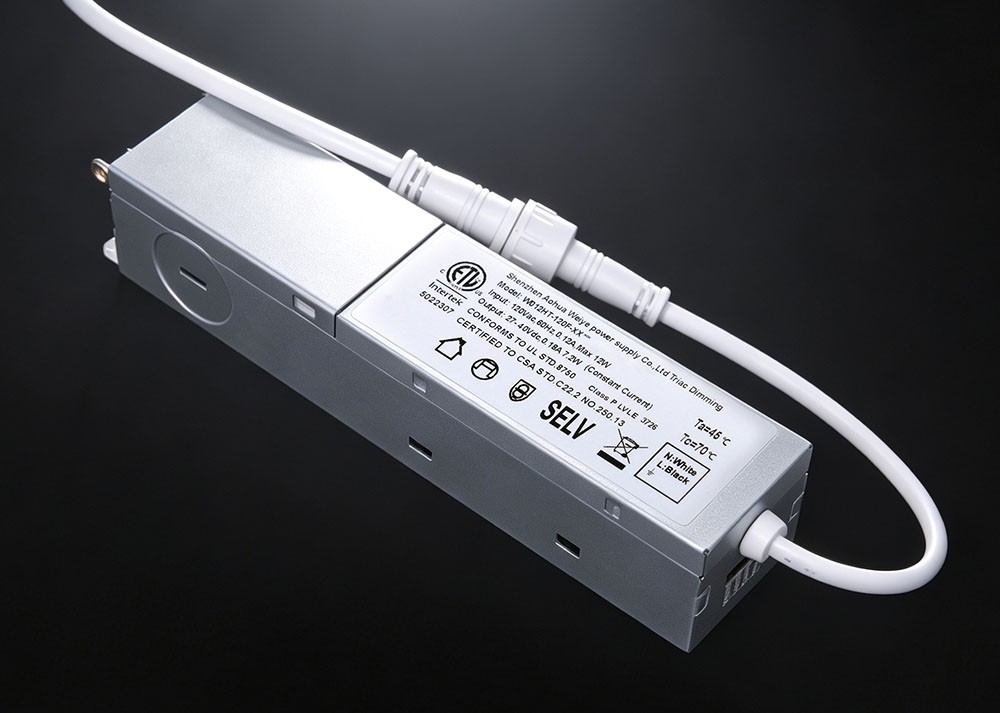

LED indoor driver power supply, driver power supply for downlights, spotlights, panel lights, linear lights, and track lights, as well as thyristor dimming driver
| Rated Power | 5-12W |
|---|---|
| Input Voltage | 108-132V |
| Output | 27-40V |
| Dimming | TRIAC |
| Certification | ETL |
| IP Rating | IP42 |
| Model No. | Aohua weiye |
MOQ and lead time confirmed on request · Samples available for qualification.
| Brand | Aohua weiye |
|---|---|
| Model | AH-D160 |
| Rated Power | 5-12W |
| Input Voltage | 108-132V |
| Output | 27-40V |
| Housing material | Iron Housing |
| Dimming Method | TRIAC |
| Certification | ETL |
| IP Rating | IP42 |

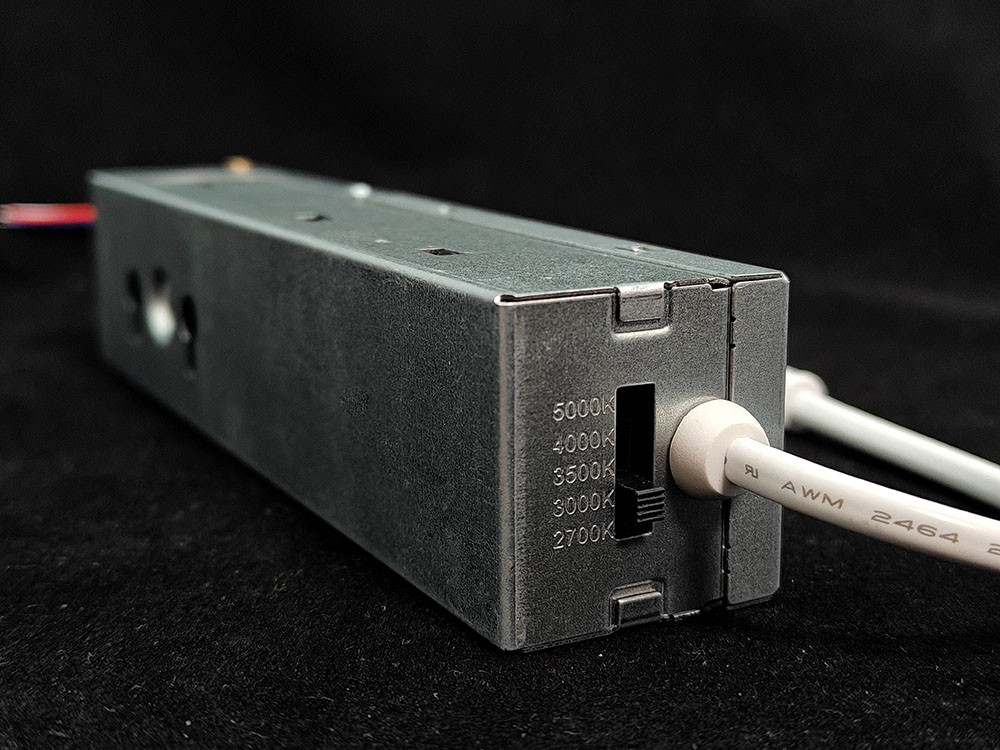

| 12W, Max Current 270mA 15W, Max Current 350mA High efficiency up to 81% Triac dimming compatible Customizable 5CCT color temperature adjustment Full-range protection: Short-circuit / Over-temperature / Over-voltage Surge protection: Common mode 2kV / Differential mode 2kV 5-year warranty |
Specifications are subject to change without notice. Please refer to the datasheet shipped with the goods for the binding version.
Send us your project requirements and our engineering team will reply within one business day.
